Technical specifications
| General characteristics | |
|---|---|

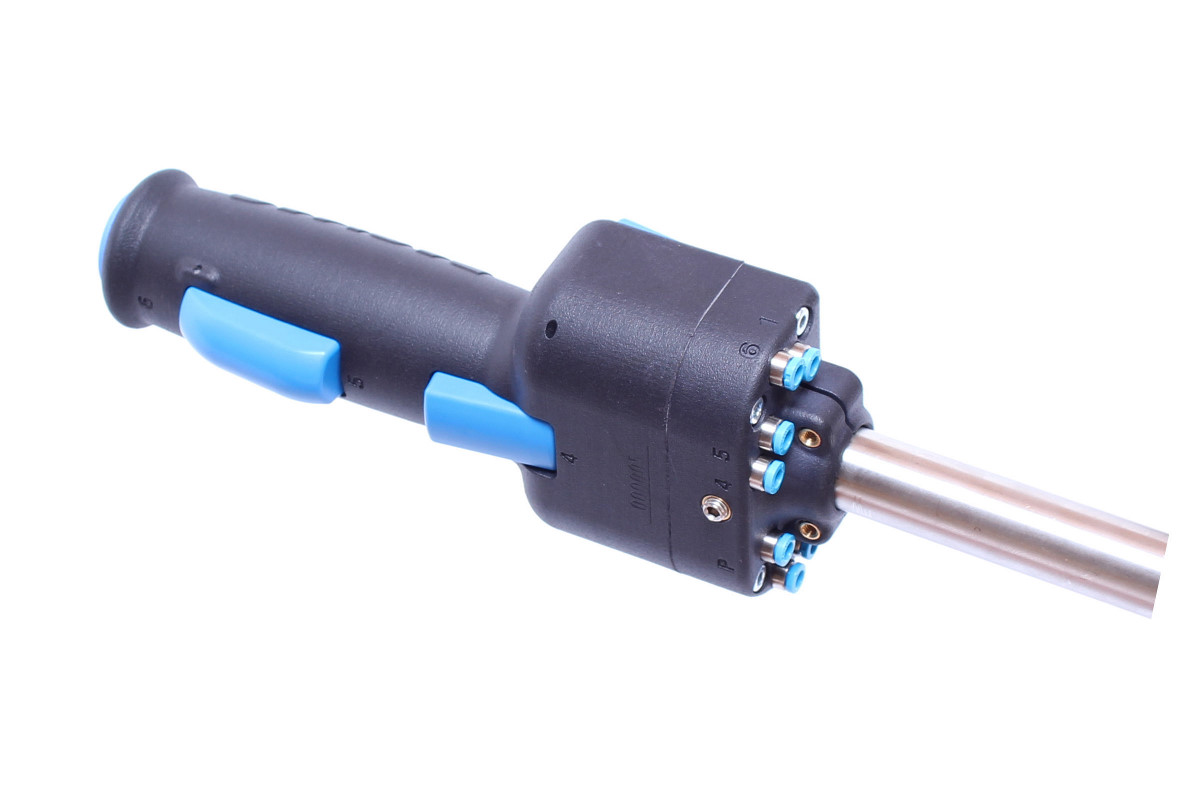

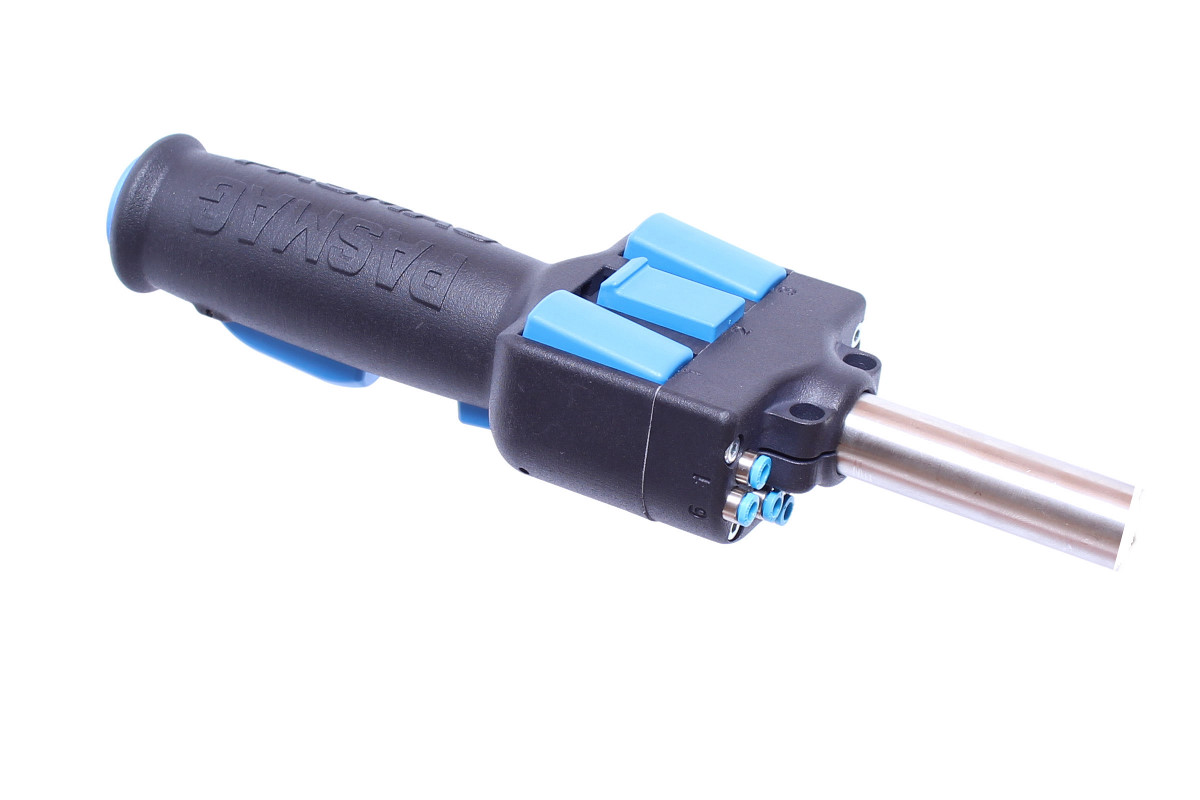

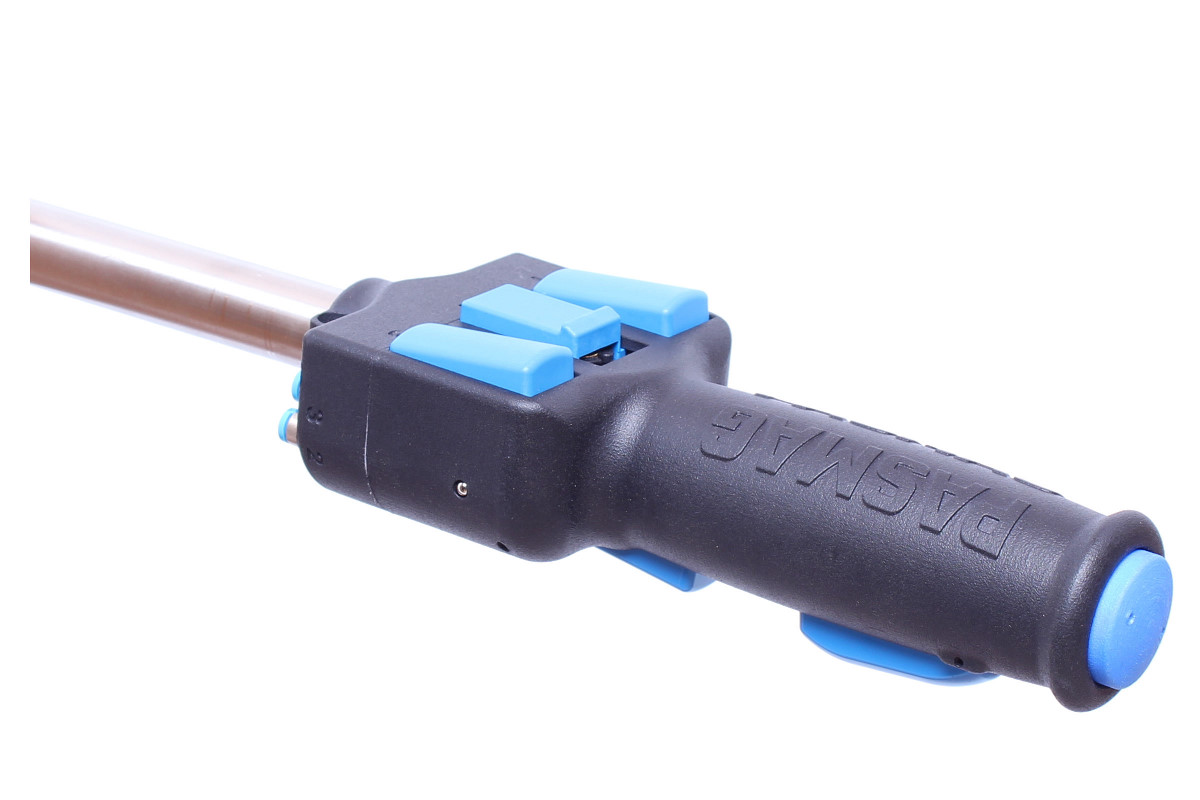

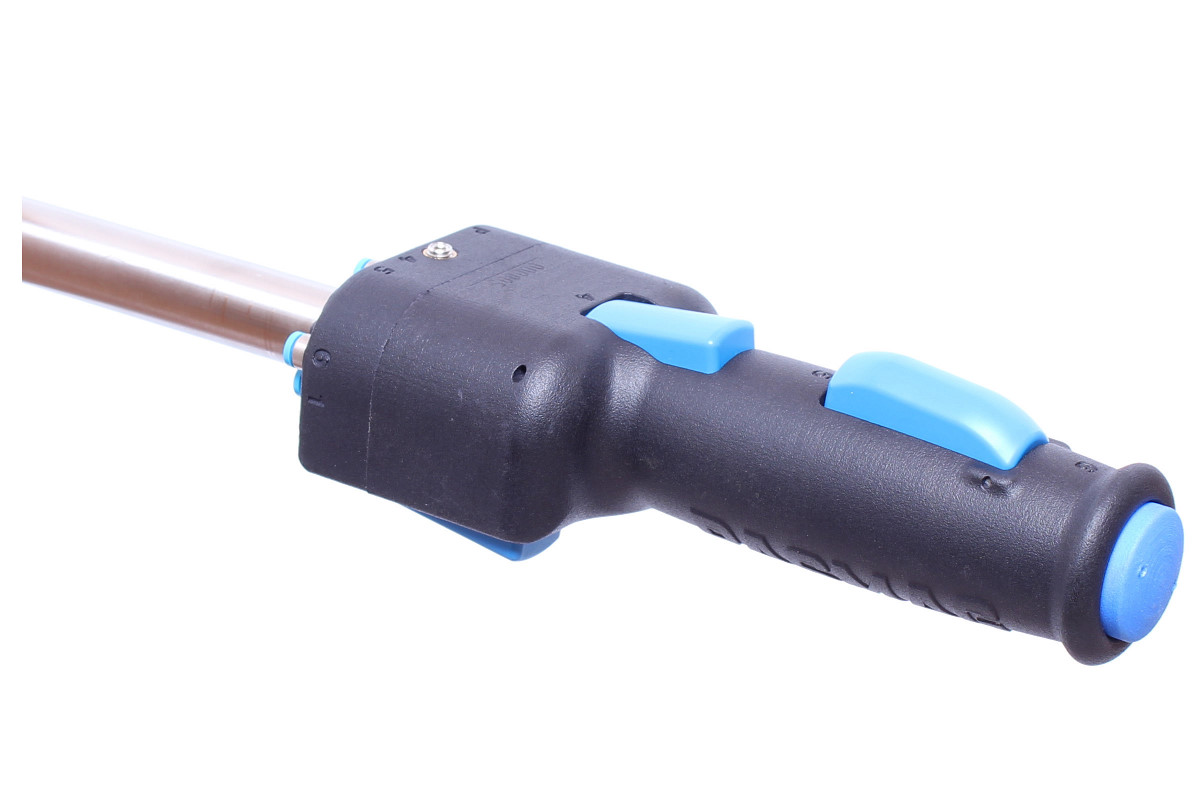

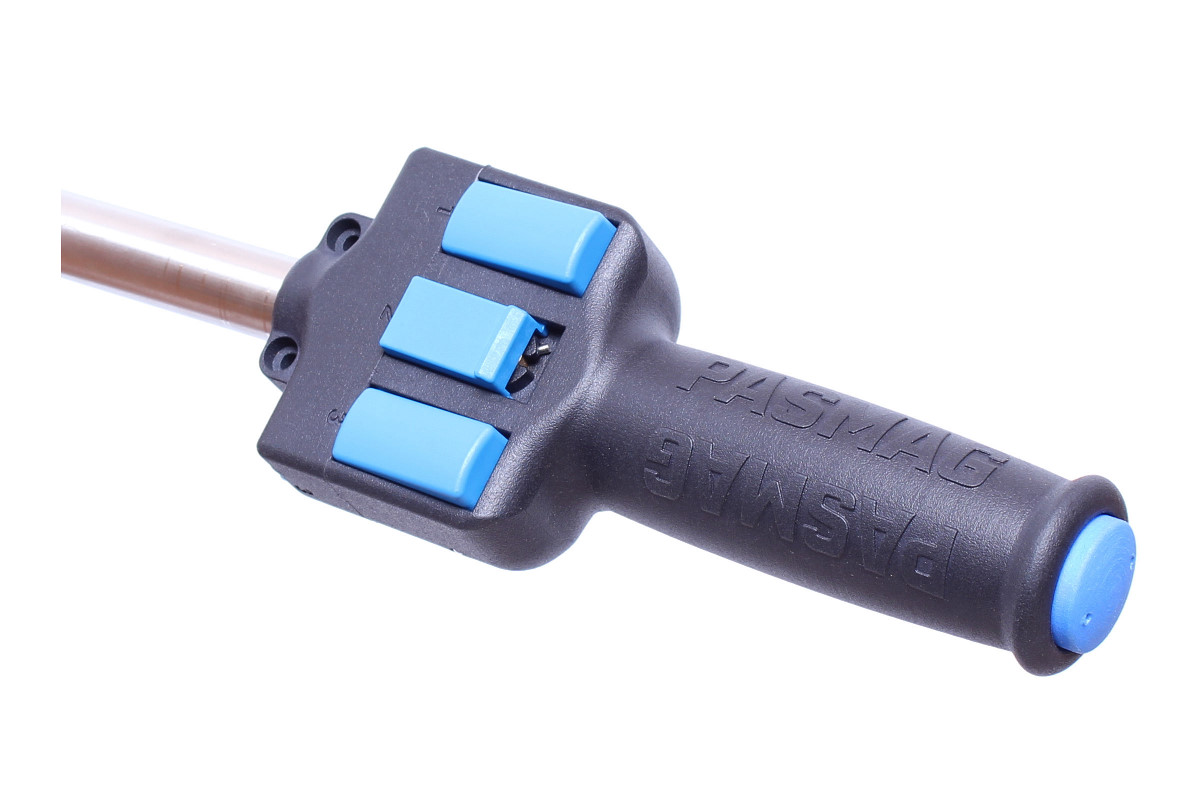

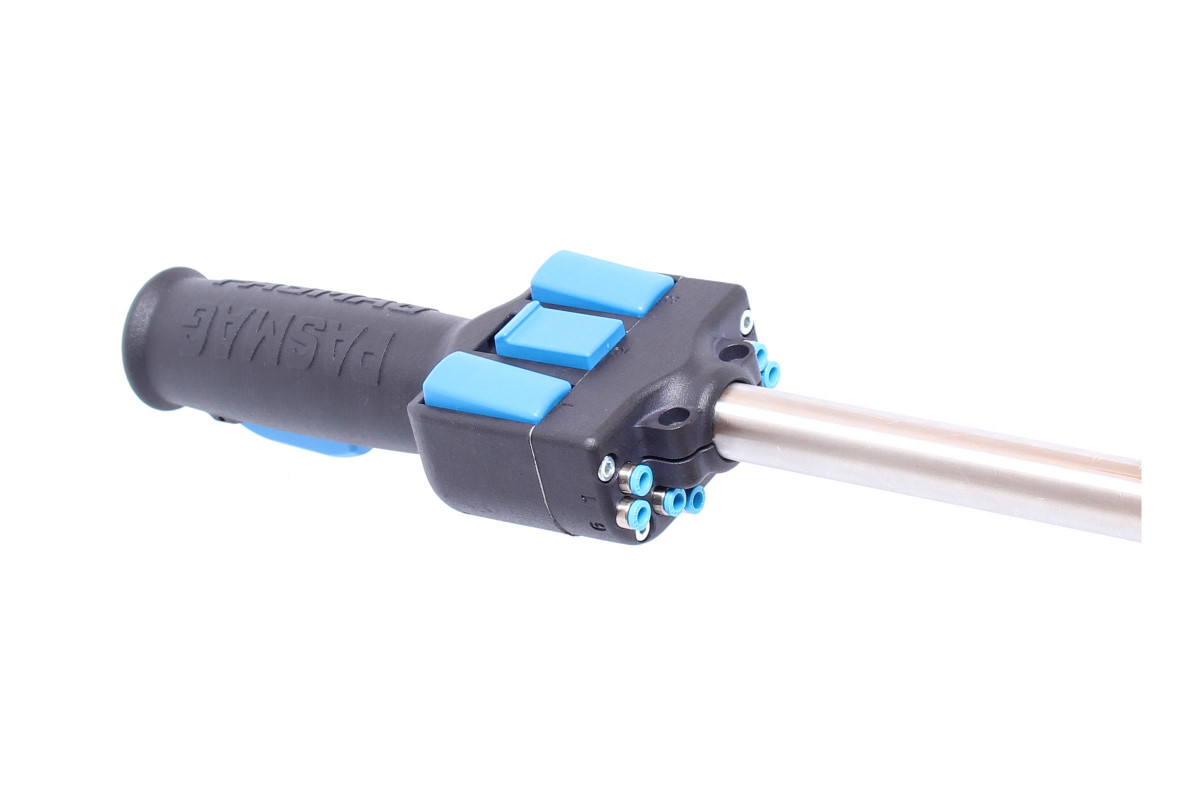

type | multifunctional pneumatic control element / pneumatic handle |
number of valves | max. 6 individual valves |
constructive structure | Piston valve, manually operated |
pneumatic connection | hose Ø4 mm |
| material | |
|---|---|
casing | PA2200 colored black |
Switching elements | PA2200 Color selectable |
valve | brass |
seals | NBR |
| Operating and environmental conditions | |
|---|---|
operating medium | Compressed air as ISO 8573-1:2010 |
Operating pressure range | 3 to 6 bar |
Ambient temperature | 20°C |
Permissible force absorption on the housing | 500 N |
Technische Daten
Order overview
Button labeling
Individual button labeling is possible on request. For further information please send your request to This email address is being protected from spambots. You need JavaScript enabled to view it.
CAD data
you can here in the stp. download file.
