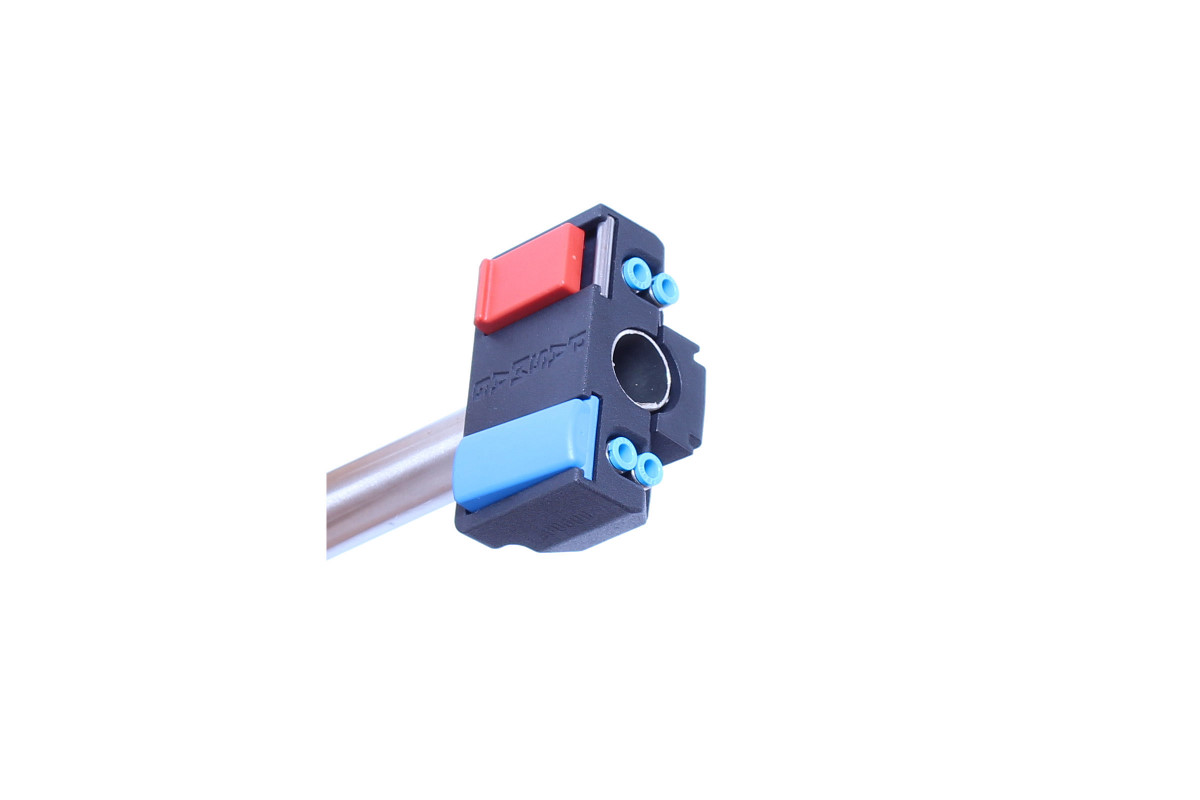

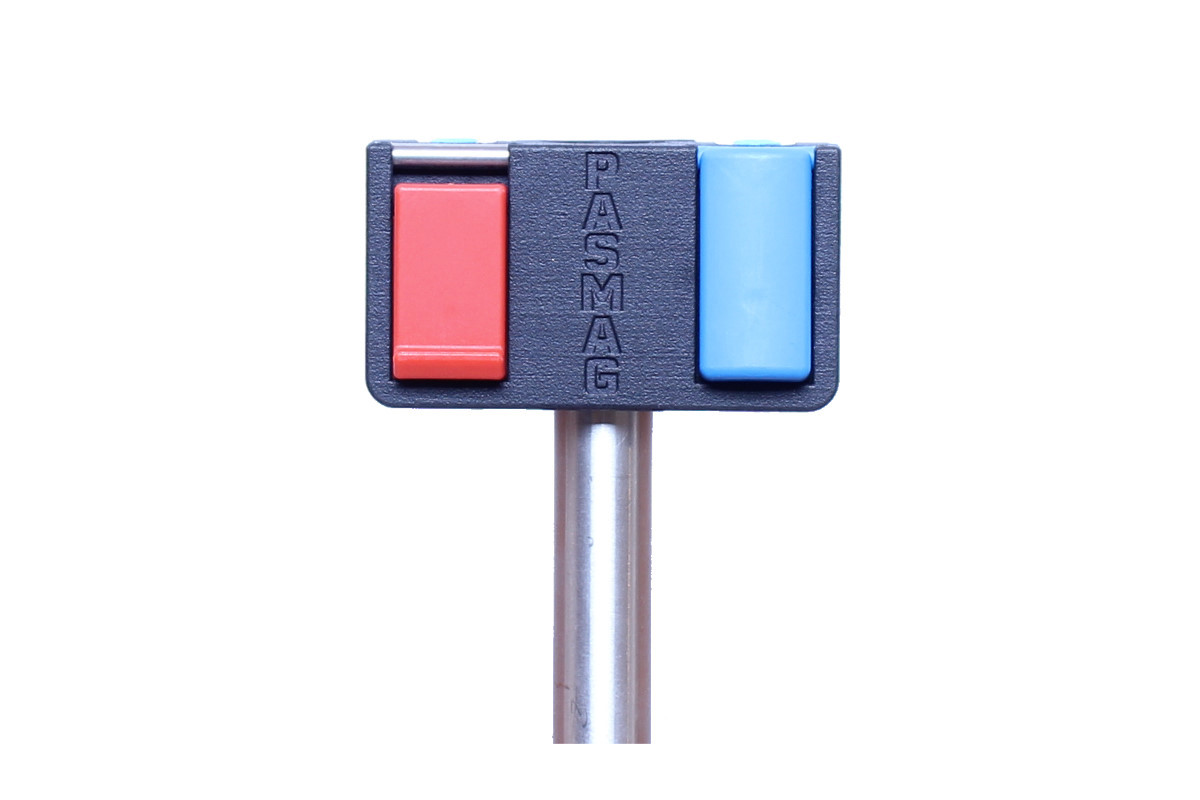

Monogrip

The smart one. Easy and quick to integrate.

Technical specifications

General characteristics
type

multifunctional pneumatic control element / pneumatic handle

number of valves

2 valves

constructive structure

Piston valve, manually operated

pneumatic connection

hose Ø4 mm


material
casing

PA2200 colored black

switching elements

PA2200 color selectable

valve

brass

seals

NBR


operating and environmental conditions
operating medium

Compressed air as  ISO 8573-1:2010

Operating pressure range

3 to 6 bar

ambient temperature

20°C

permissible force absorption on the housing

500 N

Order overview

Button labeling
Individual button labeling is possible on request. For further information please send your request to This email address is being protected from spambots. You need JavaScript enabled to view it.

CAD data
download .stp file here
