Technical specifications

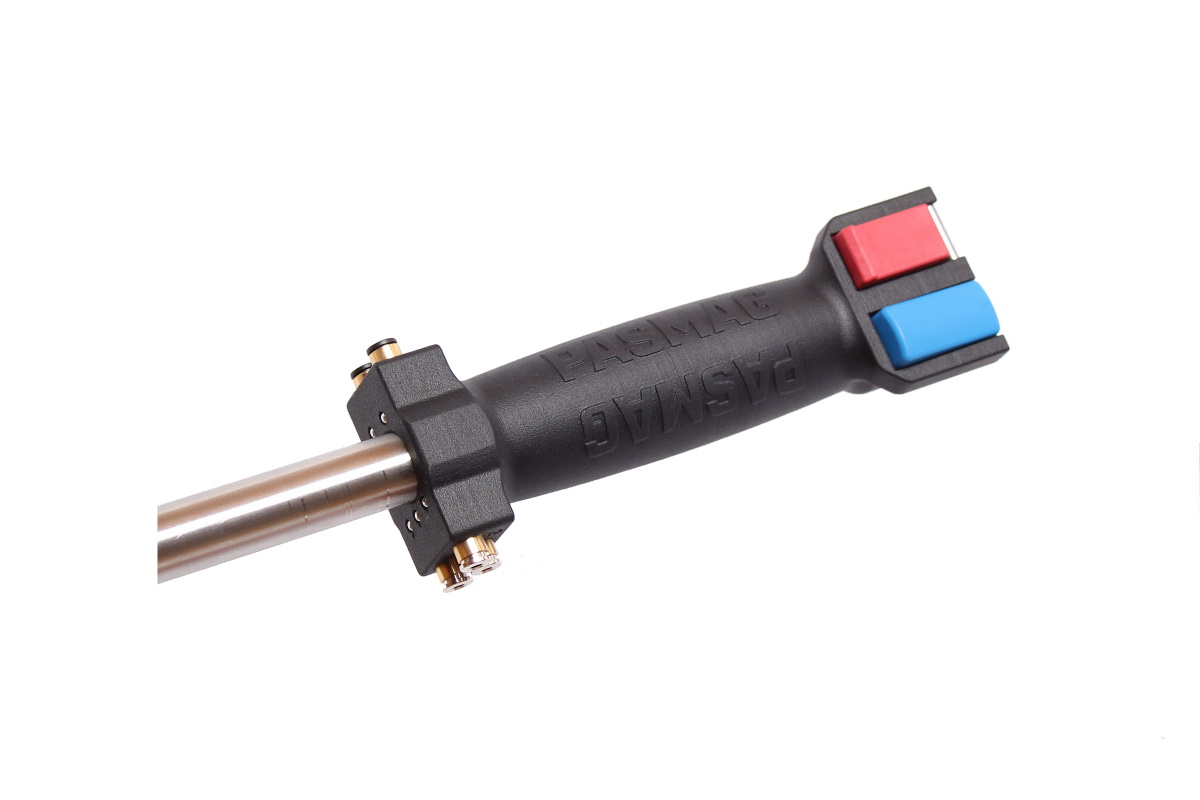

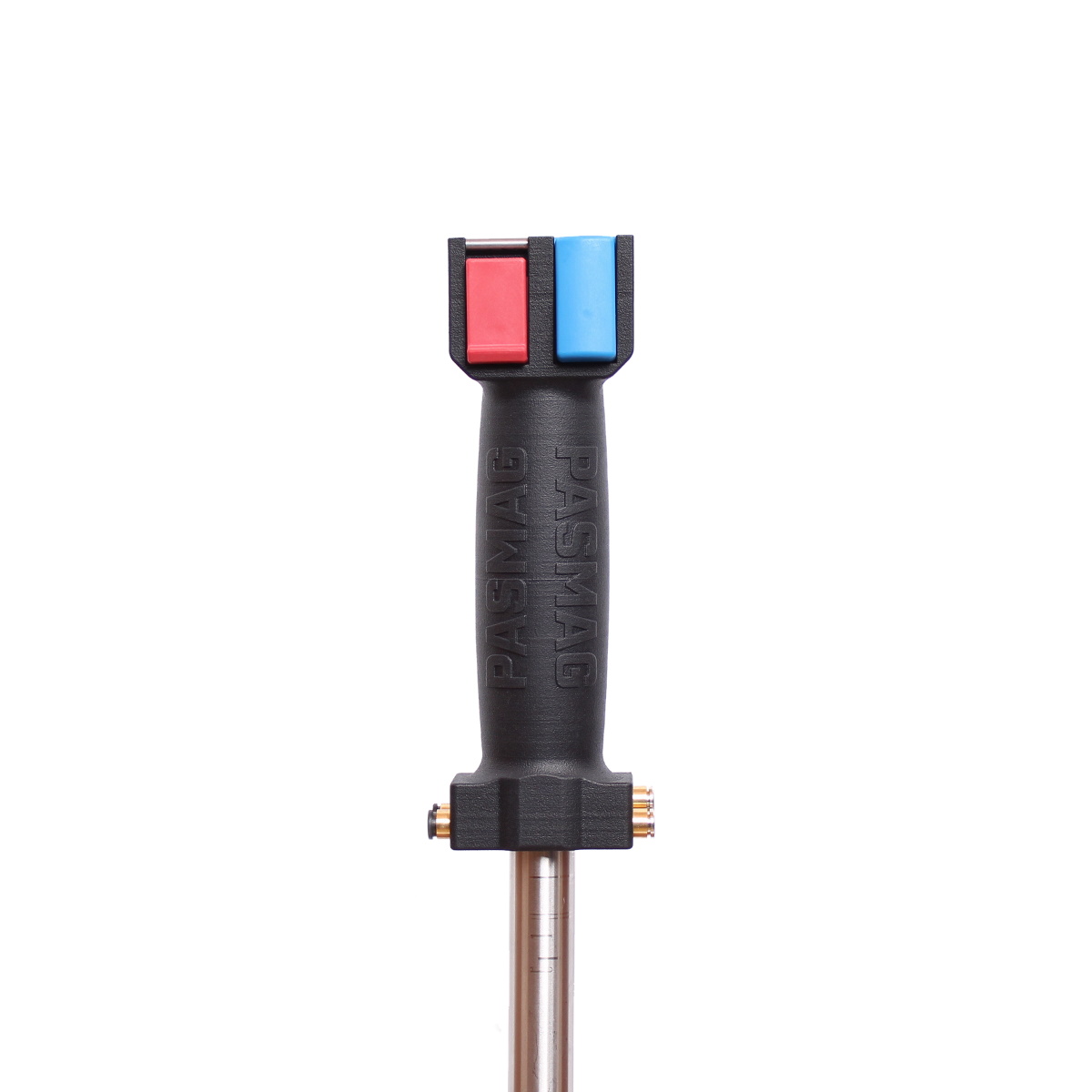

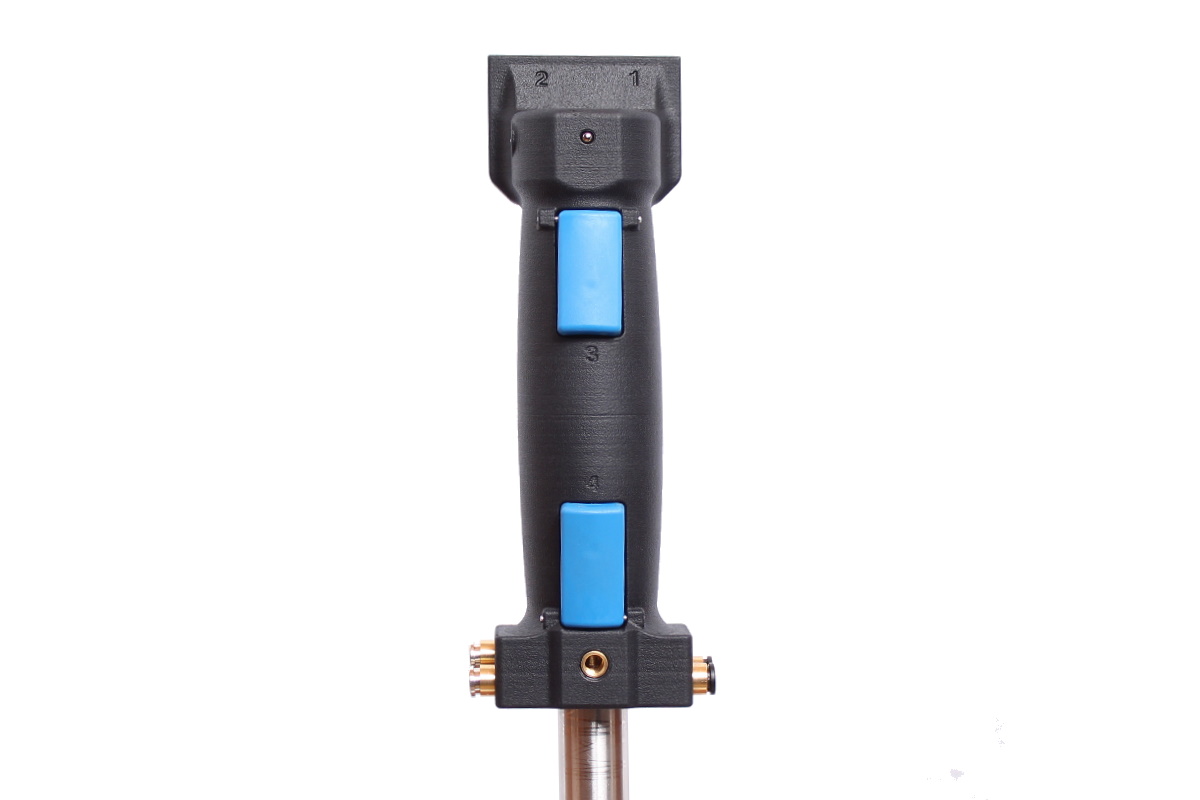

Controlgrip 2

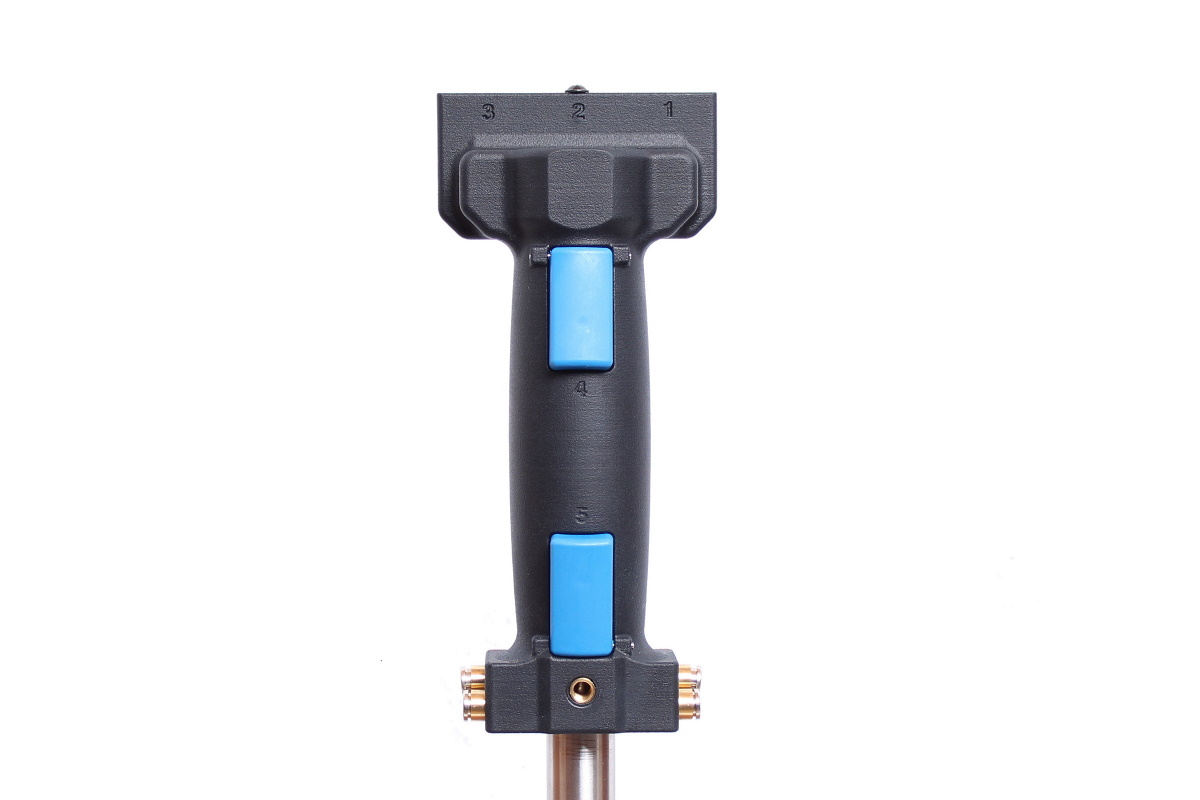

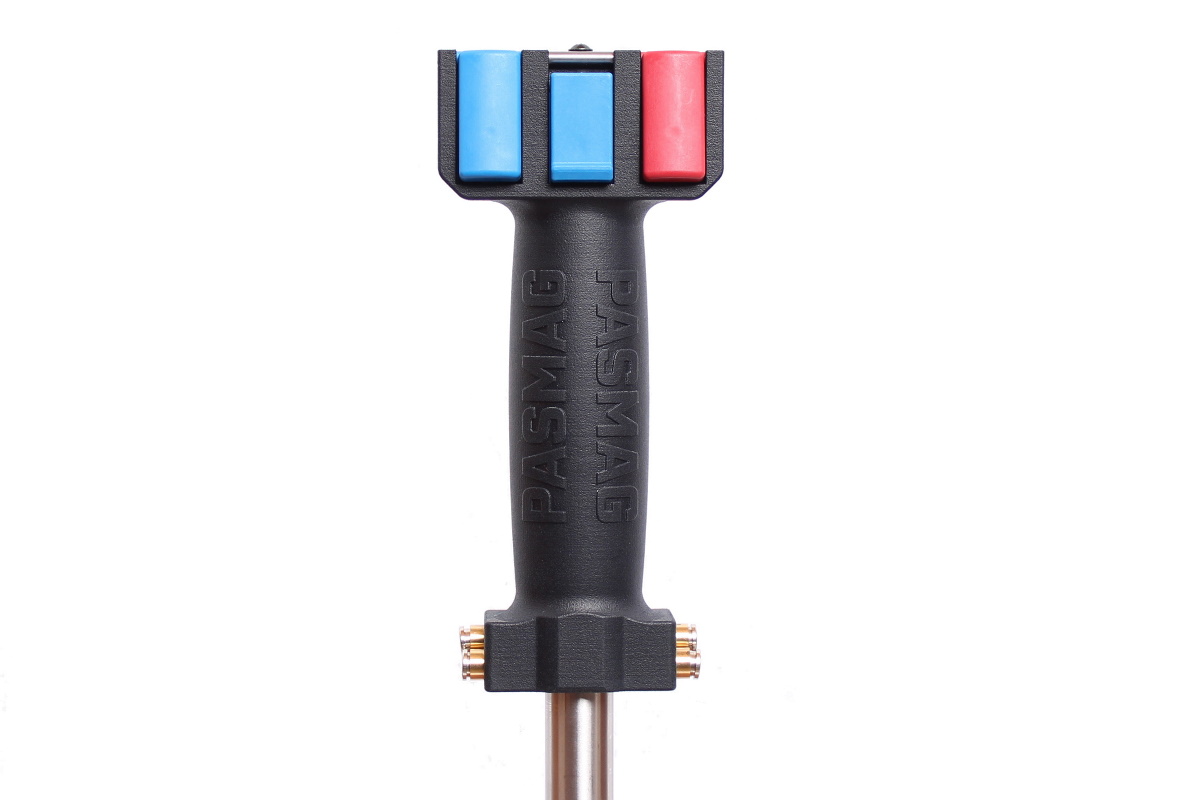

Controlgrip 3
| General characteristics | |
|---|---|
type | multifunctional pneumatic control element / pneumatic handleiff |
number of valves | Controlgrip 2: 4 valves | Controlgrip 3: 5 valves |
constructive structure | Piston valve, manually operated |
pneumatic connection | hose Ø4 mm |
| material | |
|---|---|
casing | PA2200 colored black |
Switching elements | PA6 color selectable |
valve | brass |
seals | NBR |
| Operating and environmental conditions | |
|---|---|
operating medium | compressed air as 8573-1:2010 |
Operating pressure range | 3 to 6 bar |
Umgebungstemperatur | 20°C |
Operating and environmental conditions | 200 N |
Technische Daten
Order overview
Controlgrip 2
Controlgrip 3
Button labeling
Individual button labeling is possible on request. For further information please send your request to This email address is being protected from spambots. You need JavaScript enabled to view it.
CAD data
you can here in the stp. download file
